The Architecture of Transfer Beams: Open Plans, Load Paths, and Hidden Depth

When Two Floors Need Different Plans

A ground-floor plan often pursues openness for sound reasons. Family activities overlap, garden doors connect cooking with outdoor dining, and the principal living room benefits from unbroken sightlines. The floor above tends to have another logic. Bedrooms need enclosure; baths and wardrobes benefit from partitions; private rooms may be distributed along a narrower circulation spine. There is no reason for every upper wall to coincide with a support that would be welcome in the room below. Yet an upper wall that carries loads cannot simply end in empty space because the lower floor has been drawn with fewer lines.

That mismatch gives the transfer beam its purpose. Imagine a first-floor bedroom partition carrying loads from a floor or roof and landing over the middle of a proposed great room. One response is to keep a supporting column below, which may interrupt furniture arrangements or block a view toward the terrace. Another is to redesign the upper level so the structural line falls nearer a perimeter wall. A third is to redirect the load through a deeper member at the intermediate floor to supports at each end. The last option preserves freedom in one part of the plan by accepting structural concentration in another.

It is tempting to regard the decision as a contest between an elegant open room and the inconvenience of columns. Actual choices are subtler. A column at the edge of a seating area can give a long room a useful rhythm or help separate a dining zone without erecting a wall. A thickened wall near a staircase might be entirely compatible with the architecture. Moving a bedroom wall can sometimes simplify the structure without diminishing domestic comfort. A transfer is especially persuasive when these simpler alternatives have been considered and the remaining spatial benefit is substantial.

The architect needs to examine the two floor plans simultaneously, including how they relate through the vertical dimension. The furniture plan below reveals the desired clear zones; the room layout above reveals where concentrated or distributed loads may arise. Sections then test the depth available for structural members and the headroom they leave. Even before detailed analysis, a designer can identify whether a transfer is likely to coexist comfortably with the entry sequence, glazing, and mechanical routes. That early recognition is more productive than allowing an apparently effortless lower floor to become fixed before anyone asks how the house stands.

Reading the Load Path in Section

A plan shows where rooms connect; a section can explain why their dimensions and boundaries take the forms they do. In a transfer condition, loads from the upper construction arrive at a beam, travel along it, and reach supports located away from their original line. Those supports must then carry the forces through the lower levels and into foundations. The route may involve a wall, an individual column, a substantial pier, or another engineered assembly. An architectural proposal becomes credible when there is a coherent path from the source of load to the ground.

The first useful distinction is between something that looks like a wall and something that is intended to carry structural force. An upper partition may be lightweight and non-loadbearing, while a nearby column or loadbearing wall does the important work. Conversely, a thick wall may carry significant load even if a finished interior conceals its construction. The appearance of a partition in a conceptual image cannot establish its structural role. Before celebrating a liberated lower plan, the designer must understand which upper elements actually require support and whether a transfer is necessary at all.

A section also reveals where the depth of a beam can be placed. A girder can project below the principal ceiling datum, occupy the zone between structural floor and finished ceiling, or form part of a deliberately thickened volume beside a room. Each location changes not only the appearance of the lower level but also the connection with the floor above. If a beam is introduced below an existing floor depth, some spaces may lose clear height. If it is concealed within the depth of the floor assembly, that assembly may need to be rethought, potentially affecting the upper finished level and junctions to stairs.

One should read the section beyond the beam's center. The member becomes most consequential where it meets its supports. A beautiful deep girder that seems to vanish into a wafer-thin glass wall does not give the viewer sufficient evidence of a believable load path. Supporting walls or columns may need larger dimensions, local reinforcement, connection zones, or a route into foundations. A concealed end connection is not inherently suspect, but the surrounding architecture should have room for it. The same applies at corners, where changes in direction can introduce more than one kind of structural action.

The Open Room and Its Necessary Supports

The phrase column-free is often used as shorthand for luxury. It suggests broad glazing, fluid furniture arrangements, and uninterrupted views across a substantial living volume. Yet an entirely empty floor plate is rarely the most useful objective. A dining area can benefit from a spatial edge; an entrance may need a sense of compression before opening into a view; a hearth or storage core can provide a natural place for structure. The central question is therefore not how to remove all supports but where to concentrate them so the house becomes more generous in use.

Consider a long living room with a pool terrace on one side and the kitchen on the other. A column positioned directly in the primary view corridor might be intrusive, especially if it interrupts the sliding opening or creates awkward circulation around furniture. A substantial pier at the meeting of dining and living zones might be entirely acceptable. It can terminate a built-in cabinet, anchor the side of a fireplace, or help establish the depth of a glazed facade. A transfer beam becomes more convincing when it moves loads toward such architecturally useful points rather than merely moving them to the nearest available corner.

This approach begins with everyday behavior. Where will guests circulate between kitchen and garden? Which part of the room needs a broad seating arrangement? Are there places where occupants naturally pause or turn? A support near an entrance might organize movement while preserving a clear central room. One hidden in the depth of a storage wall may allow a working zone to remain simple. On the other hand, placing a thick column near a narrow door or a frequently used path can burden daily life even if the overall floor area remains impressive.

A well-chosen support location also makes material continuity easier to understand. A limestone wall that rises from the lower floor and aligns with a heavier plane above can provide a visual and structural anchor. A bronze-framed glass opening can then remain subdivided into plausible bays rather than attempting an uninterrupted wall of impossible thinness. The supporting element does not have to become the room's main feature; it can simply give the more transparent parts of the design a convincing counterweight.

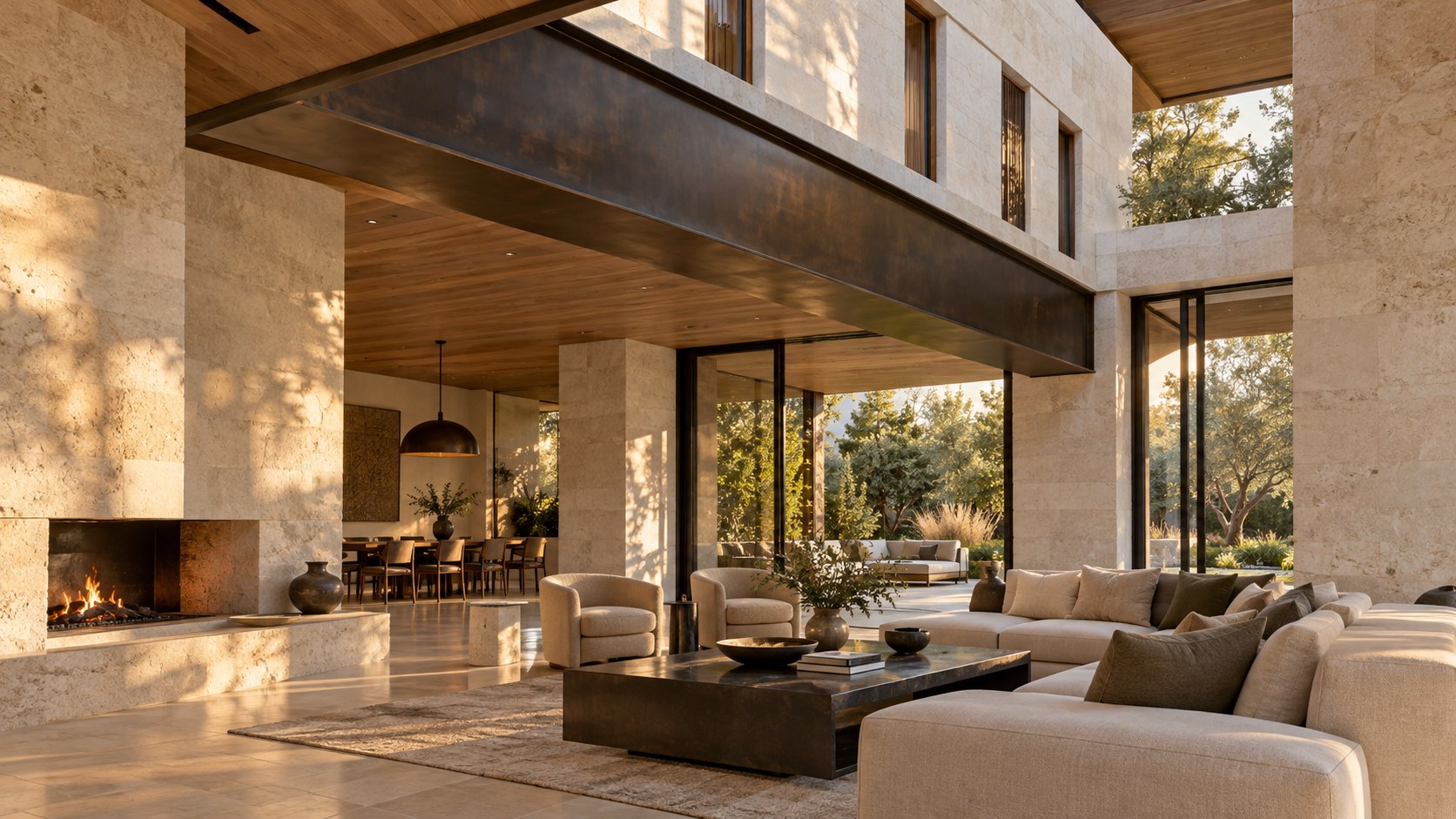

An Exposed Girder as a Deliberate Architectural Element

An exposed transfer girder can make the structural idea of a room legible. Rather than hiding the change in load path, the architecture admits that a significant member crosses the space to support the level above. Such a beam may help define a transition between kitchen and living areas, establish a ceiling datum, or reveal the scale of the span. Exposed steel can introduce a crisp dark line against plaster and timber; exposed concrete can read as an extension of the building's mass. Neither expression guarantees architectural quality without careful proportion.

The first issue is depth. A transfer member needs dimensions appropriate to its structural task, and those dimensions may be visually substantial. Drawing an impossibly thin horizontal strip to carry an upper wall undermines the entire concept. A convincing proposal uses a deep enough member to make its role believable without assuming that bigger always feels better. Its apparent weight can be moderated by positioning, light, surface finish, and the scale of the surrounding room. A beam crossing the shorter dimension of a generous great room may be more coherent than a similarly deep one running through a narrow corridor.

The next issue is how the girder reaches its supports. An exposed beam terminating at a solid masonry pier can form a legible relationship between horizontal and vertical structure. A connection to a slender column may also be possible, but it has an entirely different architectural character and requires more than a stylized contact point. The designer should anticipate bearing zones and joints rather than erase them from the image. Fire protection, finishes, and the need to accommodate the building's movements can change the final profile; an idealized bare member may not represent the finished residential assembly.

Exposure also creates a lighting question. A dark girder against a lighter ceiling becomes a strong horizontal mark, directing the eye and potentially dividing a tall volume. Grazing light may reveal texture and edges but can turn structure into theatrical decoration if every surface is illuminated equally. A better approach often allows the beam to receive ambient light incidentally, while task and social zones retain their own illumination. Where pendants or ceiling fixtures approach it, their suspension and access need to be considered as carefully as their visual alignment.

The Transfer Absorbed into a Deep Ceiling

Concealment offers a different form of architectural clarity. A living room may benefit from a continuous pale ceiling, uninterrupted walls, and a quiet relationship between indoor surfaces and the garden. If a transfer beam can be absorbed within an intentionally deep ceiling zone, the structure can perform without becoming the center of visual attention. That effect is not achieved by drawing a flat ceiling over the member. The real volume needed for the beam, its supports, associated finishes, and adjacent services must exist somewhere in the section.

One strategy is to allow the living room's ceiling to sit lower than that of a neighboring entrance or dining zone. This can create a useful spatial contrast. A sheltered sitting room may feel intimate under a lower plane, especially when the glazing opens toward a distant horizon. The beam disappears inside the deeper zone, while the ceiling transition registers as part of the room sequence. Such a move becomes awkward only when its reason is hidden from the wider plan and it produces arbitrary drops, compressed doorheads, or unplanned niches.

Another possibility is to use a raised floor zone above, provided the upper-level architecture and all transitions are coordinated. This may preserve height below but can affect thresholds, stair connections, bath arrangements, and facade lines. The architectural price is shifted rather than eliminated. A transfer concealed in a floor construction also calls for realistic coordination with openings and with any elements that must cross the structural zone. The space available to conceal a deep member should not be counted simultaneously as empty service space.

Ceiling design itself demands hierarchy. Recessed lighting, acoustic treatment, ventilation outlets, smoke detection where applicable, access panels, and curtain pockets may all seek the same shallow-looking band. A deeply concealed beam can reduce the zones available for these functions, forcing the design to choose which services cross beneath it and which travel beside it. The result may be a few carefully located ceiling breaks rather than a flawless blank plane. Those breaks can strengthen the architecture when they align with walls, circulation, and furniture rather than appearing as patchwork corrections.

The purpose of the deep ceiling is not to create the illusion that the building has no structure. It is to bring visual calm to a room while respecting a meaningful sectional requirement. Its success is measured from occupied eye levels: seated beneath the plane, approaching from an adjacent corridor, looking toward the glazing, and moving under transitions. If those experiences remain comfortable and coherent, a substantial concealed transfer can support architectural restraint rather than compromise it.

A Transfer Concealed in a Thickened Wall

Some transfers can be conceived within a wall zone rather than expressed as a beam across the ceiling. The architectural result is a substantial partition, service core edge, or deep threshold that accommodates the structural work while leaving the adjoining room comparatively open. A thick wall can also hold storage, frame a doorway, or establish a transition between public and private spaces. This solution is particularly persuasive when the house already needs a meaningful boundary at the relevant location.

Imagine an upper floor whose loadbearing elements do not align with a lower hall. A transfer incorporated into a thickened wall beside that hall could redirect their forces toward suitable supports while defining the entry to the main living room. The wall might be clad in honed stone or finished with plaster, making its mass an architectural presence rather than a disguised irregularity. From the hall, the depth of the passage offers a moment of enclosure; from the living room, the same element becomes a calm edge to furniture and circulation.

The approach is not a universal way to hide any girder. A beam has a particular direction, depth, support arrangement, and relation to the loaded structure above. A wall can accommodate a transfer only where the structural geometry permits it. Its position may affect the size of door openings, the length of built-in cabinetry, and the services that would otherwise run through the partition. Cutting a wide doorway into the same wall after the fact may alter the architectural and structural problem considerably. Openings, recesses, and terminations must be resolved as part of the original concept.

A thickened wall can also create a more complex relationship with daylight. Positioned perpendicular to a glass facade, it may cast welcome shade and separate two adjoining outlooks. Positioned carelessly, it may obscure a garden view or make a narrow room feel enclosed. The designer should test how its thickness reads from both sides and whether the resulting threshold gives the house a clearer sequence. Material treatment matters: a stone face may emphasize solidity, while warm timber within the recess can make the passage tactile without pretending the material is carrying all the loads.

Where the Redirected Loads Finally Arrive

A transfer beam does not terminate the problem of support; it changes where that problem is concentrated. At each end, forces may be delivered to columns, reinforced walls, piers, or other appropriately designed elements. These supports must then continue through the rest of the building. The glamorous uninterrupted living floor may depend on decidedly substantial construction at its sides, and the foundations below must correspond to that concentration. The architectural plan should reserve credible places for the entire route.

Consider a beam carrying the load of an upper wall to two supports beside a large glazed opening. It is easy to draw slender side posts and announce that the central view is free. What is less obvious is the coordination required at the junction between horizontal and vertical elements, the effects of concentrated reactions, and the need to integrate the supports with facade detailing. A strong idea might instead use broad stone returns beside the glazing. The opening becomes slightly more framed, but the visible assembly feels grounded and the wall depth can hold blinds, insulation, or other needed components.

Supporting elements also interact with the levels below. A column that aligns elegantly with a living-room pier might land in the middle of a garage maneuvering route. A loadbearing wall that makes sense next to a stair might interrupt a basement recreation room. A foundation arrangement that appears straightforward in a conceptual section could be complicated by excavation limits or existing ground conditions. The lower plan is not simply an afterthought to be solved once the principal room has been approved. It is part of the same architectural proposition.

Local concentration can influence the character of the support zones. A substantial pier may allow a generous glazed span between solid edges, making the house feel more deliberate than an uninterrupted curtain of glass. It can give the kitchen a place for high storage or allow a fireplace enclosure to acquire real depth. But those potential benefits should never be used to disguise an unresolved connection. The visible surface does not tell us whether the underlying assembly is adequate, and the required structural design is specific to the project.

Thinking about the receiving supports also prevents the transfer from becoming a one-way aesthetic demand. It encourages a conversation between the upper plan, the prized openness below, and the site on which the house stands. A responsible conceptual scheme shows enough substantial construction for the redirected loads to have somewhere to go. A refined residence gains credibility when its apparent ease is supported by an understandable sequence from upper rooms to ground.

Deflection, Movement, and the Rooms Above

A transfer beam may be strong enough to carry the required loads and still move under them. The extent and character of that movement matter architecturally because rooms above contain finishes, partitions, doors, glazing, and sometimes delicate junctions that do not welcome unexpected distortion. A structure can be safe in its intended sense while still creating visible cracks, sticking doors, or disquieting variations in floor level if its movement is not appropriately controlled. The architectural response begins by recognizing the difference between supporting weight and preserving the quality of the occupied rooms.

An upper partition that meets a transfer member may experience different movement from a wall standing directly over continuous support. The difference can become evident where brittle finishes cross junctions between elements with unlike behavior. Stone cladding, plaster, tile, and glazed assemblies may each have their own tolerance for displacement. Rather than imagining that one perfectly continuous surface solves every aesthetic problem, the designer should help plan joints and material transitions that can accommodate the real structure. Such details can remain quiet without being fictional.

Transfer beams can also redistribute reactions in ways that influence adjacent floors and supports. A concentrated support may shorten one route for load while creating greater demands at another location. Stiffness relationships, construction stages, and long-term behavior are subjects for engineering coordination, not visual speculation. Yet they are also reasons why an architect should avoid promising perfectly flush alignments between every surface before the supporting system has been developed. A little flexibility in detailing often protects the integrity of a much larger composition.

Consider an upper bedroom positioned over a long-span transfer. Its occupants may care less about the existence of a deep girder than about a solid-feeling floor, doors that function cleanly, and a quiet relationship to the living area below. If the project has unusually long spans or concentrated upper loads, serviceability deserves attention early enough to affect the scheme. It may lead to a different beam type, more depth, another support, or a revision to the upper wall position. These are architectural choices because they affect what the rooms can reasonably promise.

The visible room should not be burdened with a constant exhibition of movement joints. A deliberate break between a ceiling plane and a solid wall, a considered reveal at a cladding edge, or a transition between material systems can provide room for expected behavior while strengthening the composition. The important point is to regard movement as a normal property of real construction. A luxurious open plan is not one whose surfaces deny the forces acting on them, but one whose architecture remains calm and usable as the structure performs over time.

Ceiling Height, Openings, and the Daylight Section

The depth of a transfer beam alters the vertical geometry of a residence, sometimes more decisively than the visible area of its plan. A deep member may force a local ceiling to descend or encourage the designer to raise the floor-to-floor dimension. That decision then interacts with exterior massing, window heights, stair geometry, and the proportions of adjacent rooms. What looks like a small structural intervention in a floor plan can become a defining move across the entire section of the house.

A high living room is not automatically a successful living room. Extra volume can be generous, but it may also diminish intimacy, increase exposed surface, or make lighting and acoustic control more demanding. A transfer beam offers an opportunity to create hierarchy: perhaps a lower entrance passage leads into a taller glazed great room, while a deeper structural band sits over the transition. Conversely, allowing a beam to cross the middle of a carefully proportioned room can make the ceiling feel unexpectedly interrupted. The best sectional arrangement puts depth where it clarifies experience, not simply where it is least visible on a drawing.

Facade design makes the consequences especially clear. A broad sliding opening needs a credible head zone above it for structure, glazing frames, shading components, and weather detailing. If a transfer crosses at this location, the wall and roof edge must have sufficient real depth. Presenting a deep load-carrying member above a full-height glass wall without adequate space for support and envelope components may produce a seductive image but not a persuasive architectural proposition. A slightly lower or more strongly framed opening can often feel more settled than one drawn to the very underside of an impossibly thin slab.

Daylight quality depends on more than the overall width of glass. A thicker head can reduce the amount of sky visible from deep inside the room; a beam positioned perpendicular to the facade can shape an interesting pocket of shade; an opening set beneath a generous soffit may control glare while allowing a beautiful oblique view toward the landscape. Decisions about beam depth, glazing location, and interior ceiling height should be tested together under plausible sun conditions. A high ceiling alone does not guarantee an adequately illuminated interior, and a moderate ceiling does not necessarily make a room dark.

The sectional problem becomes even more important when different floors have different facade rhythms. Bedrooms above may want smaller windows and continuous walls while the living floor below wants broad openings. The transfer can accommodate that difference if its structural zone is coordinated with the exterior elevation. Rather than pretending the two levels need identical proportions, the architecture can show a clear distinction between a grounded transparent base and the more enclosed upper rooms. The beauty arises from truthful layering, not the removal of every visible sign of support.

Ventilation, Lighting, and the Contested Service Zone

In a contemporary house, the depth between structure and finished surfaces is rarely empty. Air ducts, electrical routes, recessed lighting, sprinkler or other safety services where applicable, sound-control elements, and access for future maintenance may all be required. A transfer beam is frequently located precisely where these systems want to travel: across the span of a large living space or at the boundary between two functional zones. The architectural problem is not simply to hide a girder, but to accommodate a working building around it.

The most obvious conflict occurs where a substantial beam obstructs a straight horizontal service route. Air cannot be routed through structural members merely because the ceiling drawing would look cleaner that way. A coordinated scheme may route distribution beside the beam, below it in a shallow local bulkhead, or through another zone such as a hallway or service core. The best arrangement depends on the systems involved and the specialist design, but the spatial lesson is consistent: reserve distinct volumes for structure and services before closing the section. The same space cannot be assigned twice.

Lighting can benefit from similar discipline. A deep structural band may provide an opportunity for a concealed linear source that washes an adjacent wall, yet light fixtures require mounting space, heat management as appropriate, and access. A pattern of downlights centered for visual symmetry can conflict with members, ducts, and acoustic treatment above. Designers should align lighting with activities and the actual geometry of the room. It can be more elegant to illuminate the dining surface and the hearth with a few well-placed sources than to insist on an evenly distributed ceiling grid that ignores structural obstacles.

Acoustic design adds another dimension. Large open rooms with stone floors and expansive glazing may sound lively even before anyone speaks from the upper level. A transfer beam does not automatically create an acoustic problem, but the structural and finish connections around it influence how partitions, ceilings, and floors can be assembled. Concealed beams may reduce the available thickness for absorptive linings or isolated ceilings. An exposed member may leave more of the ceiling visible but place greater attention on the rest of the room's sound-softening surfaces. Acoustic comfort needs coordination across the assembly rather than decorative panels added after the geometry is fixed.

Maintenance access is the final test of an apparently perfect ceiling. If a lighting driver, damper, or other serviceable component is buried behind a finished band, a repair may require destructive opening of the surface. Strategically located access, aligned with cabinetry or less prominent portions of a ceiling, can preserve architectural quietness while making the system serviceable. A convincing structural solution leaves room not only for the services it crosses but also for the people who will eventually inspect and repair them.

Steel, Concrete, and Composite Material Expression

The architectural character of a transfer depends partly on how its material makes depth, weight, and connection intelligible. Structural steel, reinforced or prestressed concrete arrangements, and other engineered systems offer different possibilities for profile, assembly, construction sequence, and finish. Some projects may combine materials, using one for the main span and another for supports or floor construction. There is no single material that produces the most luxurious result. The right expression follows the structural task and the physical constraints of the house.

Steel can provide a distinctly articulated member with legible flanges, webs, plates, and connections, though the actual build-up may include protective layers that alter what remains visible. Exposed steel can align well with dark metal glazing and refined timber ceilings. Its precision is compelling when the line is proportioned to the room and supported by credible end conditions. The danger is reducing it to a stylized black stripe. A beam that actually transfers major load has physical depth and connections, and its relationship to corrosion protection, fire strategy, and thermal conditions must be resolved rather than assumed from the desired finish.

Concrete can read as a more continuous extension of the building's floor and wall construction. In a carefully detailed exposed condition, its surface may establish a strong horizontal mass above a lighter glazed lower level. In a concealed condition, its presence can give a thickened ceiling or wall a natural sectional logic. But concrete introduces its own construction and dimensional questions. Formwork, reinforcement arrangement, curing, joints, and the manner in which upper loads are introduced can affect what the finished architecture looks like. An apparently seamless object should not be confused with an absence of assembly complexity.

A composite approach may allow the structural system to exploit the strengths of more than one material, but the architectural advantage is not automatic. Connections, differential behavior, construction tolerance, and interfaces with surrounding materials remain central. Timber may be appropriate in some parts of a building's structural or finish vocabulary without being the obvious transfer solution for every concentrated load. A timber-lined soffit can warm a room beneath a steel or concrete member while making no misleading claim that the decorative lining itself is carrying the upper structure. Distinguishing finish from support is part of material honesty.

Material selection should also acknowledge durability and future access. A structural element enclosed behind expensive stone may be visually quiet but difficult to inspect or modify. A visible member can be easier to understand but may introduce surface-care obligations or dominate the room if its finish is not carefully considered. The best expression gives each material a coherent role. Structure supplies the necessary path for force; enclosure protects and completes the room; finishes create tactile comfort without obscuring the basic construction story.

Construction Sequence, Temporary Works, and Buildability

A finished transfer beam may look like a simple line across a room, yet its construction can be among the more consequential operations in the building. Loads do not necessarily arrive in their final arrangement from the first day of work. Floors may be cast, frames assembled, temporary supports introduced, and walls constructed in an order that changes when and how the transfer begins to act. The sequencing and temporary works require project-specific engineering and construction planning, but architects benefit from understanding that the completed section is not the only physical condition the building will experience.

For a new house, early coordination can make the difficult work more manageable. If a large structural member must be delivered through a constrained hillside site, its feasible size and installation route may influence the choice of system. If a concrete transfer requires substantial temporary support beneath it, that support may affect excavation, lower-level access, or the order in which other work can proceed. A beam located in a tight service zone may be possible on paper yet exceptionally awkward to assemble and inspect. The cost of complexity can be felt in the construction sequence long before it is visible in the finished room.

Alterations to an existing residence are often more demanding. Removing a loadbearing wall to create an open living floor cannot be reduced to placing a beam where the wall used to be. The upper loads need reliable support throughout the intervention, the existing foundations and lateral stability must be evaluated, and the new connections must fit the actual fabric of the building. The architectural ambition may remain entirely reasonable, but a concept image cannot establish whether the necessary temporary or permanent structure can be inserted. The right response is to preserve the design intent while allowing investigation to determine the workable solution.

Tolerances also govern finish quality. A beam and its supporting elements are built within achievable construction tolerances, while adjacent stone cladding, cabinet fronts, and glazing often aspire to very fine visual alignment. The design should contain adjustability and joints where needed instead of pretending that separate trades will achieve identical dimensions by luck. A deliberately proportioned recess beside a column can absorb a small difference while appearing more refined than a brittle junction. These details are invisible in broad concept views but essential to the room's lasting coherence.

The Transfer and the Long-Term Flexibility of the House

Residential needs change. A playroom becomes a study, a guest suite becomes a caregiver's room, or a family rearranges the boundary between kitchen and dining. An open-plan level can accommodate many of these changes easily, but a transfer beam introduces structural dependencies that may not be visible in the finished interior. A seemingly lightweight partition above might land on an important structural route, while a substantial-looking decorative wall below may be unrelated to the primary support system. Long-term flexibility depends on recognizing the distinction.

A carefully planned transfer can enable adaptability by preserving a large contiguous living floor whose non-structural partitions may be modified more readily. It can allow furniture, work zones, and social areas to change without requiring a complete rethinking of the building's main load path. Yet its benefits are not unlimited. Adding a heavily loaded feature above, cutting through a structural wall, enlarging an opening near a support, or moving services through the structural zone may demand careful specialist review. An architect should avoid marketing an open plan as infinitely reconfigurable simply because its columns are less visible.

Documentation becomes an aspect of design stewardship. Future occupants and professionals need to know where the transfer lies, which elements it supports, and which partitions are genuinely non-loadbearing. Structural information should not depend on a visual memory of exposed beams; the member may be completely concealed. Clear records of connections and material assemblies can prevent damaging alterations and make repairs less intrusive. This is particularly important when an ambitious house changes ownership and later occupants may have no direct knowledge of its original planning decisions.

The architectural language can help communicate lasting organization without turning the house into a diagram. A thickened wall that holds a transfer may remain an enduring boundary even as furniture changes on either side. A deep ceiling band can continue to mark the transition from entrance to great room after the original lighting has been replaced. An exposed girder may give a stable datum for multiple arrangements of tables and sofas. These enduring elements can make a flexible interior feel coherent instead of perpetually provisional.

Good adaptability also means acknowledging limits without making the house feel rigid. The fixed structural path can coexist with lighter, easily renewed elements: cabinetry, screens, floor finishes, lighting, and movable furniture. By deciding early which parts of the plan are effectively permanent, designers can give greater freedom to the parts most likely to change. A transfer beam is therefore not only an answer to the open-plan preferences of the present occupants. Properly integrated, it can form a dependable framework for future versions of domestic life.

Choosing Between Exposure, Concealment, and Spatial Tradeoffs

The three principal architectural approaches do not form a hierarchy from crude exposure to sophisticated invisibility. An exposed girder, a member absorbed into a deep ceiling, and a transfer incorporated within a thick wall can each be the right answer under different spatial conditions. The choice should begin with what the residence values most: an unobstructed view, an intimate ceiling height, a coherent entrance sequence, generous upper rooms, or flexibility in how furniture is arranged. The structural strategy is then judged by how honestly it supports those priorities.

An exposed beam often suits a room where a strong horizontal element can provide order. A high great room with a clear division between dining and lounging may welcome the visible span. The cost is that the member must be carefully proportioned and detailed, including how it meets supports and how its finish interacts with the room. A concealed deep-ceiling solution suits a different ambition: visual quietness and continuity. Its costs lie in sectional depth, possible changes in headroom, and greater competition between structure, lighting, ventilation, and acoustic treatment. Hiding the beam does not make those costs disappear.

A wall-integrated transfer is particularly attractive where the house already needs enclosure, storage, or a framed passage. The thickness becomes productive if it organizes the plan and preserves a valuable adjacent opening. It becomes less convincing if a bulky new wall is inserted solely to keep the ceiling smooth or if the loaded geometry simply does not fit the desired boundary. In some schemes, a modest visible support and a smaller beam may outperform a more elaborate hidden arrangement. Architectural maturity includes recognizing when a little structure in the room creates a better room.

There is also a question of resource and complexity. Concentrated transfer systems can require substantial materials, connections, temporary works, and coordination, and those consequences should be considered as part of the project's wider goals. Eliminating a column may be worthwhile where it transforms a room's use or view, but not where the benefit is mostly photographic. The amount of material needed for a particular solution cannot be judged by appearance alone. An apparently slender exposed member is not necessarily more efficient than a concealed system; specialist design determines the actual requirements.

The decision ultimately becomes an exercise in disciplined prioritization. Begin with the daily experiences the lower room should offer, study the upper level and the entire route of support, and reserve the depth needed for a feasible structural solution. Then coordinate the ceiling, openings, services, and finishes so the structure belongs to the architecture. Luxury is not defined by an absence of columns or by an exhibition of engineering. It lies in the coherence of a spatial idea that has accepted the weight of the rooms above.
